XT1010-20 series heavy - duty cantilever milling and boring machineIntroduction to machine tools Yansheng Machine Tool Technology Center cantilevermilling and boring machine project department brings together many well-known domesticmanufacturers engaged in cantilever milling machine design, processing, assemblytechnology, quality inspection of senior engineers, experts at home and abroad advanceotechnology, advanced servo control and transmission technology , So that the series ofmachine table with a bearing capacity, to meet the milling, boring, drilling three planefeatures.

 Machine use XTl010-20 series cantilever milling and boring machine in the military,energy, electricity, transportation, mining, metallurgy, heavy machinery and other national keyindustries widely used. Machine power, rigidity, high precision, to meet the large parts of theplane milling and boring. Optional right angle milling head to achieve a clamping five-sidedprocessing to improve the processing quality and efficiency, universal milling head, extendecmilling head. 90 degree deep boring milling head to achieve a complete folder in the shapeof complex parts of the complex processing of various parts

 The overall structure of the machine The series of machine tools for the bed fixed on thefoundation, the table along the bed rails straight reciprocating motion, the column connectedto the right side of the bed, the beam connected with the cantilever along the column rail upand down, cantilever and column for the electronic control mechanical clamping The Beamscolumns can be configured with powerful cutting power head or milling boring drill multi-function power head.

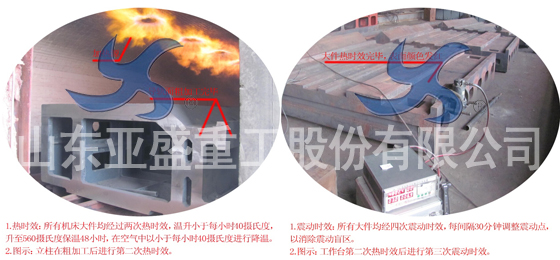

Basic parts of the process of protection Machine basic parts from the bed, table, columnbeams, cantilever, slide plate and other components. Machine tool large HT250 high qualityalloy wear-resistant cast iron, the vibration aging of a furnace when the aging of a vibrationaging a roughing a vibration aging half of the finishing a hot furnace aging a vibration agingof a finishing to eliminate the workpiece stress to ensure that the machine Long-termoperation accuracy.

Guide wear Machine tool rail with "super audio quenching" after grinding treatment, higrhardness, wear resistance, the table paste guide rails, with high wear resistance, low frictionshock absorption and other characteristics, so that the machine can maintain long-termaccuracy

Workbench movement Mechanical transmission 8m below the trapezoidal screw drive8m above the coiler stripe drive, to achieve low speed, high torque, to ensure low-speedmilling smooth

Control System For the digital AC servo control system, including programmable PLccentral processing unit and intelligent power amplifier to achieve the exchange of variablefrequency motor stepless speed regulation, with smooth operation, set accurate, highefficiency.

 Main features Milling head for Taiwan Gongyang technology assembly, at the same timewith boring, milling, drilling and other functions, configure the right angle milling headuniversal milling head and other accessories can be a fixture to achieve five-sided processing

Digital display system The machine can be equipped with magnetic grating, grating, ballgrid and other displacement measurement unit to the shaft displacement of the digitadisplay (user-defined).
